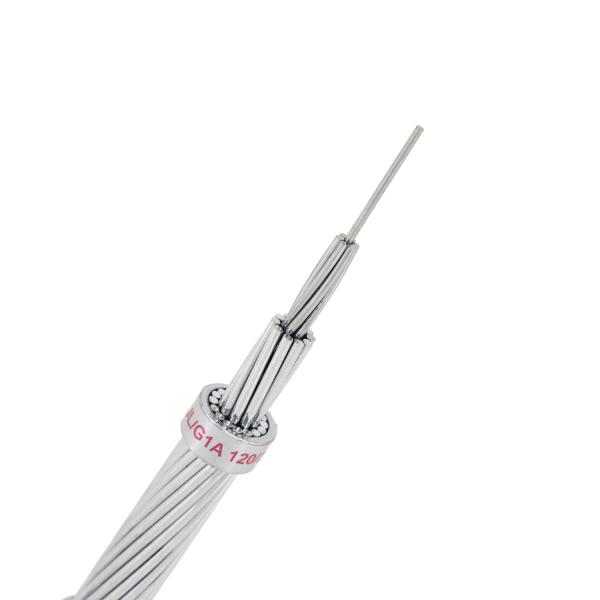

Overhead Acsr Panther Conductor aluminium Acsr Dog Conductor

Name: Overhead Acsr Panther Conductor aluminium Acsr Dog Conductor
Brand: Sanwu
Price: 1 USD

Brand Name : Sanwu

Model Number : Acsr Panther Conductor

Certification : ISO CCC

Place of Origin : Henan

MOQ : 1000M

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200 tons per day

Delivery Time : 1-15days

Packaging Details : New Wooden drum, reel, circle, or according to customers request.

Name : Acsr Panther Conductor Acsr Dog Conductor

Wires : Aluminium Wires

Standard : ASTM Standard

Size : 4 AWG 2 AWG

Insulation : Bare conductor

Type : Acsr Dog Conductor

Contact Now

Overhead Acsr Panther Conductor Aluminium Acsr Dog Conductor

Application

This ACSR is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

ACSR (aluminum conductor steel reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.

Feature:

1. Economical - Good electricity property and cheaper than cooper cables.
2. Flexible - easy to install and work with distributions and other applications.
3. Safe - prevent electric short circuit and potential risk of fire.
4. Durable - anti UV Radiation and moisture, Corrosion Resistance.

Overhead Acsr Panther Conductor aluminium Acsr Dog Conductor

Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.
