Aluminum Clad Steel Stranded ACSR Wire JLB-240 35A 40A Overhead Line Bare Wire Factory Direct Corrosion Resistant
Aluminium Conductor Steel Reinforced Standard. Aluminium Conductor Steel Reinforced (ACSR) cables are widely utilized in overhead power transmission and distribution systems. These cables combine the lightweight and corrosion-resistant properties of aluminium with the tensile strength of steel, making them a preferred choice for many utility companies and industrial applications.
IEC61089, BS 215, ASTM B232, CSA C49, DIN48204, JIS C3110
Specifications
| Code | Size (AWG/MCM) | Number of Strands(mm) | Weight(kg/km) | Rated Strength(kg) |
| Rose | 4 | 7*1.96 | 58.3 | 399 |
| Iris | 2 | 7*2.47 | 92.7 | 611 |
| Pansy | 1 | 7*2.78 | 117 | 740 |
| Aster | 2/0 | 7*3.5 | 186 | 1375 |
Technical Characteristics

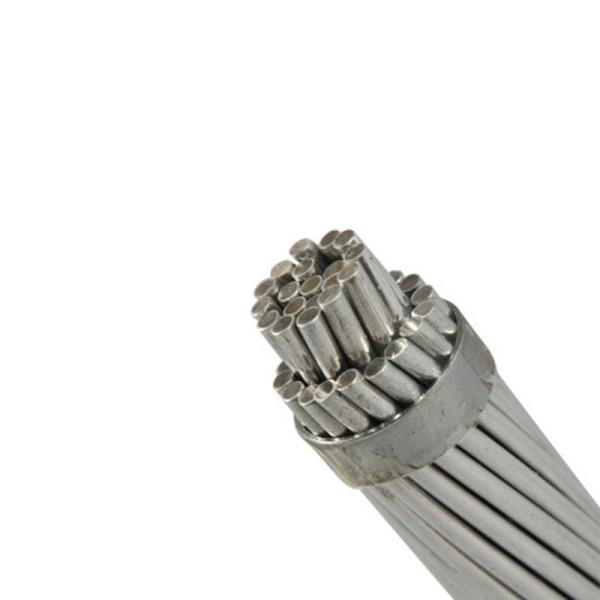

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products, please leave a message, and we will immediately answer your questions.
Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.
Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
According to customers request.
