397.5 Acsr Steel Reinforced Aluminium Conductor Medium Voltage

Name: 3975 Acsr Steel Reinforced Aluminium Conductor Medium Voltage
Brand: Sanwu
Price: 1 USD

Brand Name : Sanwu

Model Number : ACSR-001

Certification : ISO CCC

Place of Origin : Henan

MOQ : 1000M

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 200 tons per day

Delivery Time : 1-15days

Packaging Details : New Wooden drum, reel, circle, or according to customers request.

Name : Steel Reinforced Aluminium Conductor

Material : Al

Keywords : Overhead conductor

Life span : More than 30 years

Application : Industry

Vlot : Medium voltage

Original place : Henan, China

Type : 397.5 Acsr

Contact Now

397.5 Acsr Steel Reinforced Aluminium Conductor Medium Voltage

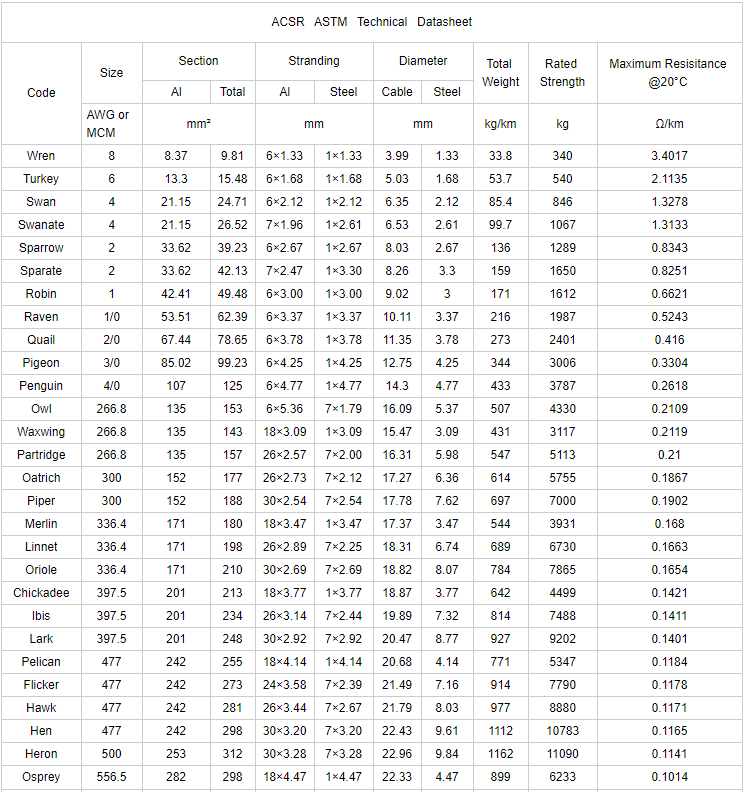

Acsr Steel Reinforced Aluminium Conductor has long been widely used as overhead high tension transmission lines and has an established reputation for economy and dependability. The illustration below shows typical standard sizes and stranding patterns.

**Acsr Steel Reinforced Aluminium Conductor** **Specs**
Code	Size (AWG/MCM)	Number of Strands(mm)	Weight(kg/km)	Rated Strength(kg)
Rose	4	7*1.96	58.3	399
Iris	2	7*2.47	92.7	611
Pansy	1	7*2.78	117	740
Poppy	1/0	7*3.12	147.5	897
Aster	2/0	7*3.5	186	1375

397.5 Acsr Steel Reinforced Aluminium Conductor Medium Voltage

Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.
397.5 Acsr Steel Reinforced Aluminium Conductor Medium Voltage

Product Tags:

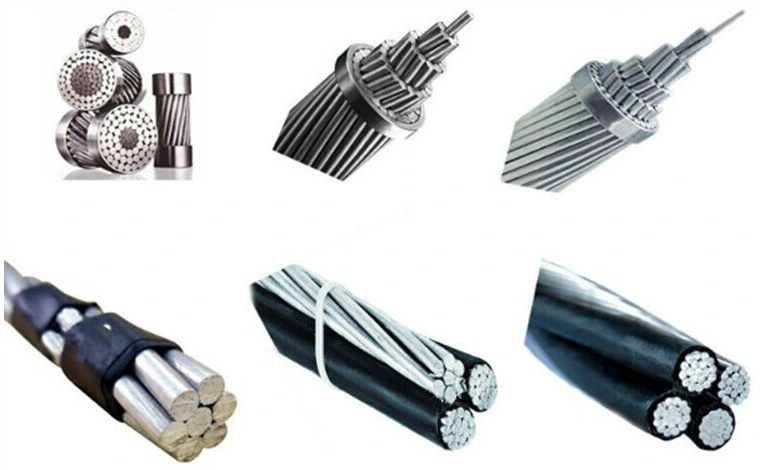

397.5 Acsr Steel Reinforced Aluminium Conductor Medium Voltage Images
