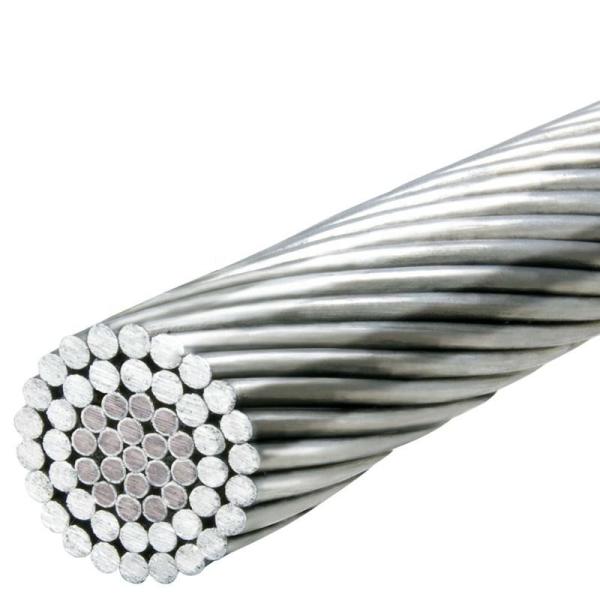

ACSR Raven conductor Aluminium Conductor Steel Reinforced ASTM Standard

  • 1
  • 2
  • 3

Brand Name : Sanwu

Model Number : ACSR-001

Certification : ISO CCC

Place of Origin : Henan

MOQ : 1000M

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 200 tons per day

Delivery Time : 1-15days

Packaging Details : New Wooden drum, reel, circle, or according to customers request.

Name : ASTM Aluminium Conductor Steel Reinforced

Material : ACSR

Keywords : Overhead conductor

Life span : More than 30 years

Application : Industry

Standard : ASTM Standard

Original place : Henan, China

Type : Pansy Poppy

Contact Now

Rose Iris Aluminium Conductor Steel Reinforced ASTM Standard

Applications


Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Features:
a. high tensile strength
b. better sag properties
c. economic design
d. best suited for transmission lines with long spans

Aluminium Conductor Steel Reinforced Conductor
Code Size (AWG/MCM) Number of Strands(mm) Weight(kg/km) Rated Strength(kg)
Rose 4 7*1.96 58.3 399
Iris 2 7*2.47 92.7 611
Pansy 1 7*2.78 117 740
1/0 1/0 7*3.12 147.5 897
Aster 2/0 7*3.5 186 1375

ACSR Raven conductor Aluminium Conductor Steel Reinforced ASTM Standard


Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.
ACSR Raven conductor Aluminium Conductor Steel Reinforced ASTM Standard
